Axial fan,ball bearing

service life L10 at +40℃ (+104℉):  min. 65,000h fan body aluminium, rotor metal

Connection

3-pole clamp for 2.5mm², clamping torque 0.8Nm max.

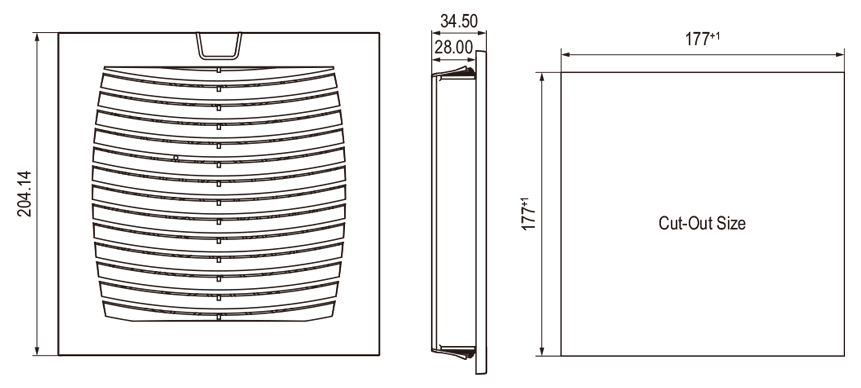

Enclosure cut-out

177×177⁺¹ mm

Mounting frame

4 built-in ratchet braces for mounting (6 notches for wall thickness 1-4mm).

additional use of screws possible if needed.

Filter mat

F5

Filter material

new ABS material confirm to RoHS, fireproof or not fireproof can be choose

Operating/Storage temperature

-25 to +65℃ (-13 to +149℉) / -40 to +70℃ (-40 to +158℉)

Operating/Storage humidity

max. 90% RH (non-condensing)

Protection type/Protection class

IP55 / I (earthed)

Function

with F5 function

FC204-F5

-

without fan

-

-

-

-

-

FCF204A-F5-230A-C

230VAC

120×120×38

138/162

100

21/18

0.12

43/48

FCF204A-F5-230B-C

230VAC

120×120×25

96/112

65

14/12

0.07

43/48

FCF204-F5-230C-C

230VAC

150×150×50

272/316

200

26/28

0.23/0.2

54/59

FCF204-F5-230D-C

230VAC

Ø172×51

272/316

200

26/28

0.23/0.2

52/62

FCF204-F5-230E-C

230VAC

172×150×51

272/316

200

26/28

0.23/0.2

52/62

FCF204A-F5-115A-C

115VAC

120×120×25

96/112

65

21/18

0.22/0.18

43/48

FCF204A-F5-115B-C

115VAC

120×120×38

138/162

100

21/18

0.22/0.18

43/48

FCF204-F5-115C-C

115VAC

150×150×50

272/316

200

26/28

0.43/0.4

54/59

FCF204-F5-115D-C

115VAC

Ø172×51

272/316

200

26/28

0.43/0.4

52/62

FCF204-F5-115E-C

115VAC

172×150×51

272/316

200

26/28

0.43/0.4

52/62

FCF204A-F5-D1-C

120&230VAC

120×120×38

138/162

100

19/15

0.18/0.12

43/48

FCF204-F5-D2-C

120&230VAC

172×150×51

272/316

200

26/28

0.13/0.11

52/62

FCF204A-F5-400A-C

400VAC

120×120×38

138/162

100

21/18

0.09/0.07

43/48

FCF204-F5-400B-C

400VAC

150×150×50

138/162

200

26/28

0.13/0.11

43/48

FCF204-F5-400C-C

400VAC

Ø172×51

272/316

200

26/28

0.13/0.11

52/62

FCF204-F5-400D-C

400VAC

172×150×51

272/316

200

26/28

0.13/0.11

52/62

FCF204A-F5-12A-C

12VDC

120×120×38

180

120

7.2

0.6

48

FCF204-F5-12B-C

12VDC

172×150×51

374

260

12

1

62

FCF204A-F5-24A-C

24VDC

120×120×38

180

120

9.6

0.4

48

FCF204-F5-24B-C

24VDC

172×150×51

374

260

12

0.5

48

FCF204A-F5-48A-C

48VDC

120×120×38

180

120

9.6

0.2

48

FCF204-F5-48B-C

48VDC

172×150×51

374

260

12

0.25

48
