Axial fan,ball bearing

service life L10 at +40℃ (+104℉): min. 56,000h rotor metal

Connection

3-pole clamp for 2.5mm², clamping torque 0.8Nm max.

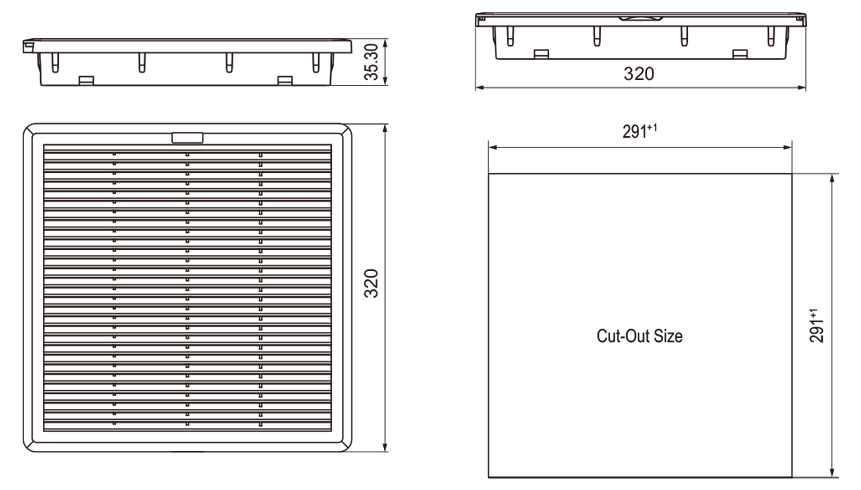

Enclosure cut-out

291×291⁺¹ mm

Mounting frame

screw fixing type, easy to open the cover

Filter mat

F5

Filter material

new ABS material confirm to RoHS, fireproof or not fireproof can be choose

Operating/Storage temperature

-25 to +65℃ (-13 to +149℉) / -40 to +70℃ (-40 to +158℉)

Operating/Storage humidity

max. 75% RH (non-condensing)

Protection type/Protection class

IP55 / I (earthed)

Function

with F5 function

SF322-F5

-

without fan

-

-

-

-

-

SFF322-F5-230A-C

230VAC

200×200×60

800/1000

400

48/63

0.23/0.28

63/66

SFF322A-F5-230B-C

230VAC

200×200×60

800/1000

480

48/63

0.23/0.28

63/66

SFF322A-F5-230C-C

230VAC

Ø220×60

800/1000

550

48/63

0.23/0.28

63/66

SFF322A-F5-230D-C

230VAC

225×225×80

1000/1150

700

72/80

0.33/0.35

63/66

SFF322-F5-230E-C

230VAC

280×280×80

1200/1400

850

120/160

0.5/0.7

65/70

SFF322-F5-115A-C

115VAC

200×200×60

800/1000

480

48/63

0.42

63/66

SFF322A-F5-115B-C

115VAC

200×200×60

800/1000

480

48/63

0.42

63/66

SFF322A-F5-115C-C

115VAC

Ø220×60

800/1000

480

48/63

0.42

63/66

SFF322A-F5-115D-C

115VAC

225×225×80

1000/1150

700

70/80

0.65/0.7

63/66

SFF322-F5-115E-C

115VAC

280×280×80

1200/1400

850

120/160

1/1/1.4

65/70

SFF322-F5-400A-C

400VAC

200×200×60

800/1000

400

60

0.2

63/66

SFF322A-F5-400B-C

400VAC

200×200×60

800/1000

480

60

0.2

63/66

SFF322A-F5-400C-C

400VAC

Ø220×60

800/1000

480

60

0.2

63/66

SFF322A-F5-400D-C

400VAC

225×225×80

1000/1150

700

72/80

0.2

63/66

SFF322-F5-400E-C

400VAC

280×280×80

1200/1400

850

120

0.36

65/70

SFF322A-F5-12-C

12VDC

200×200×60

1008

700

24

2

68

SFF322A-F5-24-C

24VDC

200×200×60

1008

700

24

1

68

SFF322A-F5-48-C

48VDC

200×200×60

1008

700

24

0.5

68
